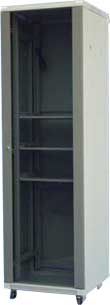

T2 Network Cabinet |
| SPICIFICATIONS: |
| (1) STANDARDS |
| |
Meet ANSI/EIA RS-310-D, DIN41491, PART1, IEC297, PRAT7, GB/T3047.2-42 requirement Compatible with 19" International Standard, the ETSI Standard; |
| (2) FEATURES |
| |
Steel Frame; |
| |
Vented front door and rear door accelerate the convection inside enclosure; |
| |
Smoked Plexiglas front door, color is optional; |
| |
Removable side panels; |
| |
Leveling feet or castors, Max. Static load 800Kg, Max. Dynamic load 350Kg; |
| (3) MATERIALS |
| |
SPCC high-quality cold roll steel; |
| |
Thickness: Mounting Rails 2.0mm, others 1.2mm; |
| |
Surface Treatment: Degreasing, rustproof, Phosphoric Spraying; |
| (4) PPLICATION |
| |
For LAN Construction, Modems, Industrial Controlling, Lighting Control, Monitor |
| |
Equipments, etc. |
| |
Compatible with 19’ standard equipments, metric’s standard equipment. | |
| |
|
| |
| Order code |
深度 |
| Width(mm) |
Capacity |
450mm |
600mm |
800mm |
900mm |
960mm |
| 600mm |
47U |
-- |
T26647.900 |
T26847.900 |
T26947.900 |
T26A47.900 |
| 42U |
-- |
T26642.900 |
T26842.900 |
T26942.900 |
T26A42.900 |
| 37U |
-- |
T26637.900 |
T26837.900 |
T26937.900 |
-- |
| 32U |
-- |
T26632.900 |
T26832.900 |
T26932.900 |
-- |
| 27U |
-- |
T26627.900 |
T26827.900 |
T26927.900 |
-- |
| 22U |
-- |
T26622.900 |
T26822.900 |
-- |
-- |
| 18U |
-- |
T26618.900 |
T26818.900 |
-- |
-- |
| 15U |
-- |
T2615.900 |
-- |
-- |
-- |
| 12U |
-- |
T26612.900 |
-- |
-- |
-- |
| 9U |
-- |
-- |
-- |
-- |
-- |
| 6U |
-- |
-- |
-- |
-- |
-- |
| 800mm |
47U |
-- |
T28647.900 |
T28847.900 |
-- |
-- |
| 42U |
-- |
T28642.900 |
T28842.900 |
T28942.900 |
T28A42.900 |
| 37U |
-- |
T28637.900 |
T28837.900 |
T28937.900 |
T28A37.900 |
| 32U |
-- |
-- |
-- |
-- |
-- |
| 27U |
-- |
-- |
-- |
-- |
-- |
| 22U |
-- |
-- |
-- |
-- |
-- |
| 18U |
-- |
-- |
-- |
-- |
-- |
| 15U |
-- |
-- |
-- |
-- |
-- |
| 12U |
-- |
-- |
-- |
-- |
-- |
| 9U |
-- |
-- |
-- |
-- |
-- |
| 6U |
-- |
-- |
-- |
-- |
-- | |
 |
| | |
|
